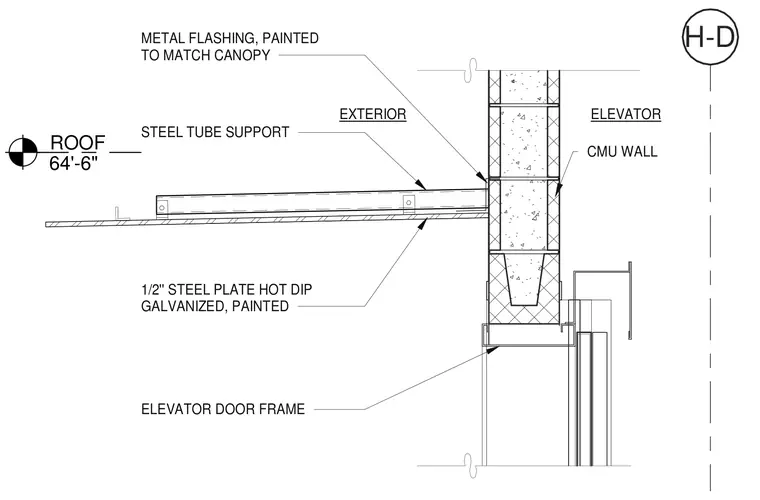

An elevator door frame is set beneath a concrete masonry unit wall at elevation 64'-6" at the roof level. A steel tube support and one-half inch hot-dip galvanized and painted steel plate extend outward from the masonry to form a canopy. Painted metal flashing matches the canopy and seals the exterior junction against the CMU wall.
H-D ROOF 64'-6" EXTERIOR ELEVATOR METAL FLASHING, PAINTED TO MATCH CANOPY STEEL TUBE SUPPORT 1/2'' STEEL PLATE HOT DIP GALVANIZED, PAINTED ELEVATOR DOOR FRAME CMU WALL
