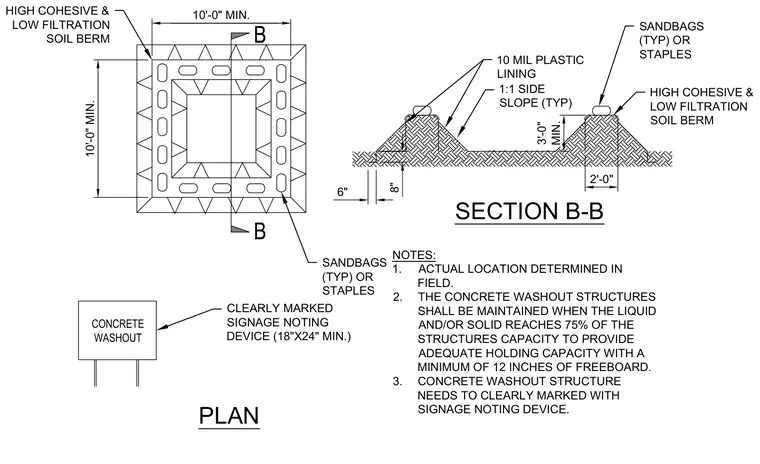

An above-grade concrete washout structure is constructed using high cohesive and low filtration soil berms with a minimum height of three feet and a minimum width of two feet at the top. The interior basin features a ten-mil plastic lining secured along the top of the berms using sandbags or staples. The side slopes are graded at a typical one-to-one ratio, and the overall basin measures a minimum of ten feet by ten feet. Required site signage noting the device must be clearly displayed and measure at least eighteen by twenty-four inches.
10 MIL PLASTIC LINING 1:1 SIDE SLOPE (TYP) SANDBAGS (TYP) OR STAPLES HIGH COHESIVE & LOW FILTRATION SOIL BERM 6" 8" 3'-0" MIN. 2'-0" SECTION B-B 10'-0" MIN. HIGH COHESIVE & LOW FILTRATION SOIL BERM 10'-0" MIN. B B SANDBAGS (TYP) OR STAPLES CLEARLY MARKED SIGNAGE NOTING DEVICE (18"X24" MIN.) CONCRETE WASHOUT PLAN NOTES: 1. ACTUAL LOCATION DETERMINED IN FIELD. 2. THE CONCRETE WASHOUT STRUCTURES SHALL BE MAINTAINED WHEN THE LIQUID AND/OR SOLID REACHES 75% OF THE STRUCTURES CAPACITY TO PROVIDE ADEQUATE HOLDING CAPACITY WITH A MINIMUM OF 12 INCHES OF FREEBOARD. 3. CONCRETE WASHOUT STRUCTURE NEEDS TO CLEARLY MARKED WITH SIGNAGE NOTING DEVICE.
