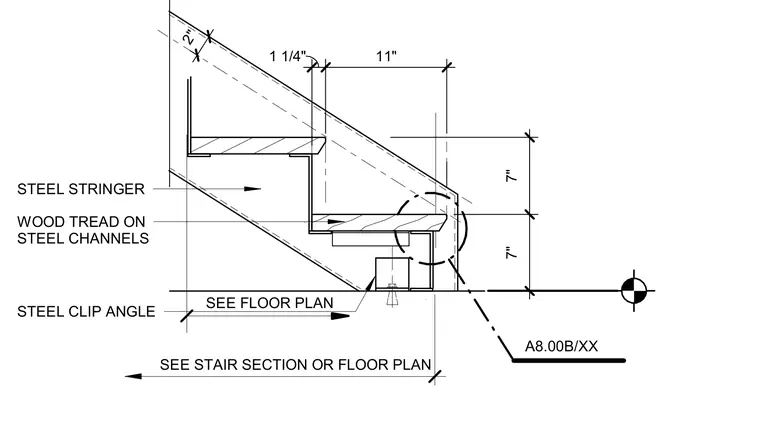

Wood treads are mounted on steel channels and supported by steel stringers and steel clip angles anchored to the floor slab. Dimensions indicate seven-inch risers and eleven-inch treads with standard clearances per stair section and floor plan requirements.
WOOD TREAD ON STEEL CHANNELS STEEL STRINGER STEEL CLIP ANGLE SEE STAIR SECTION OR FLOOR PLAN SEE FLOOR PLAN 1 1/4" 11" 7" 7" 2" A8.00B/XX
