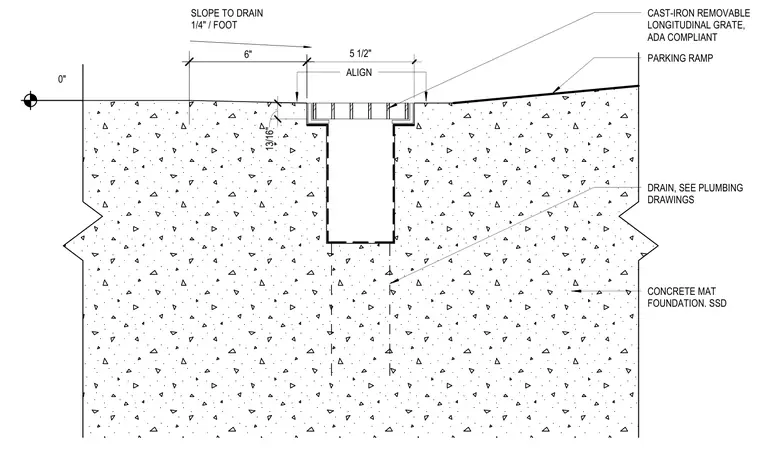

A cast-iron removable longitudinal ADA compliant grate sits within a trench drain embedded in a concrete parking ramp and concrete mat foundation. The parking ramp slopes toward the drain at one-quarter inch per foot. The drain assembly includes a five-and-one-half-inch opening aligned with a subsurface drain connected to the plumbing drawings.
CAST-IRON REMOVABLE LONGITUDINAL GRATE, ADA COMPLIANT CONCRETE MAT FOUNDATION. SSD ALIGN 0" DRAIN, SEE PLUMBING DRAWINGS 6" SLOPE TO DRAIN 1/4" / FOOT 5 1/2" PARKING RAMP 13/16"
