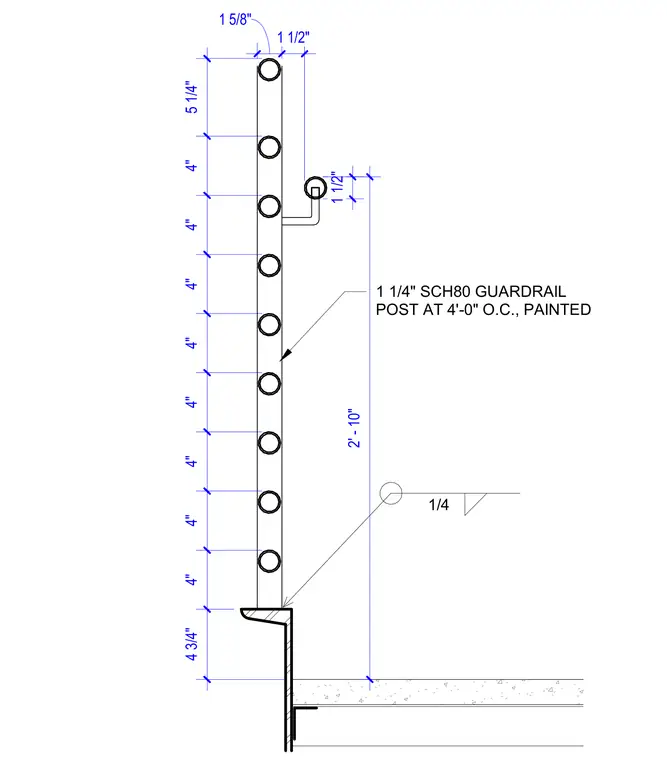

A painted 1 1/4" Schedule 80 steel guardrail post is spaced at 4'-0" on center. The post features multiple horizontal rail members spaced uniformly at 4" intervals vertically. A handrail is mounted to the post at 2'-10" above the finished floor level, supported by a welded bracket. The base of the post is welded to a structural support plate with a 1/4" fillet weld.
1 5/8" 1 1/2" 1 1/2" 2' - 10" 4 3/4" 4" 4" 4" 4" 4" 4" 4" 4" 5 1/4" 1 1/4" SCH80 GUARDRAIL POST AT 4'-0" O.C., PAINTED 1/4
