Architectural · A-6GDY6

West Wall Parapet and Curtain Wall Transition Section

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Windows Curtain Walls Roofs Parapets Ceilings Waterproofing / Flashing Insulation Connections / Plates Roof / Floor Openings

Connections

HSS Connection Bolted Connection

About this detail

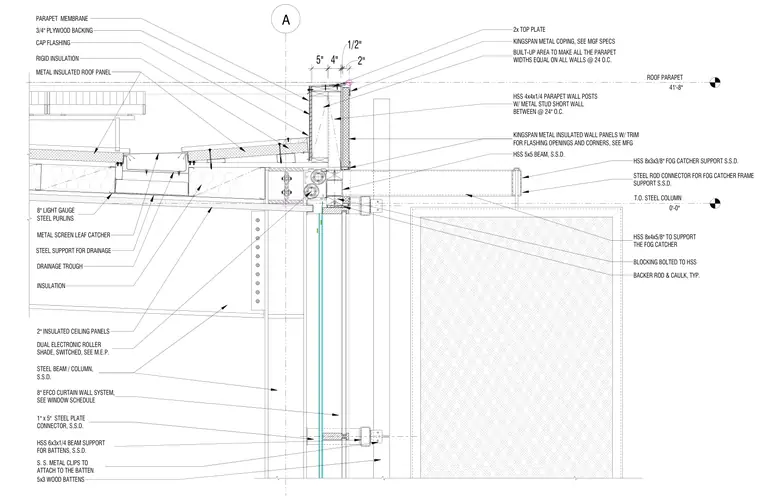

This wall section details the west roof parapet and top of curtain wall transition, anchored by hollow structural section 4x4x1/4 parapet wall posts with intermediate metal stud short walls spaced at twenty-four inches on center. The assembly incorporates Kingspan metal insulated wall and roof panels, rigid insulation, and a parapet membrane cap flashing over three-quarter-inch plywood backing. Support framing utilizes hollow structural section 5x5 beams and hollow structural section 8x3x3/8 fog catcher supports connected via a one-by-five-inch steel plate connector. An eight-inch EFCO curtain wall system ties into the structure below, complemented by a drainage trough, metal screen leaf catcher, and steel supports. Interior finishes include two-inch insulated ceiling panels and a dual electronic roller shade.
