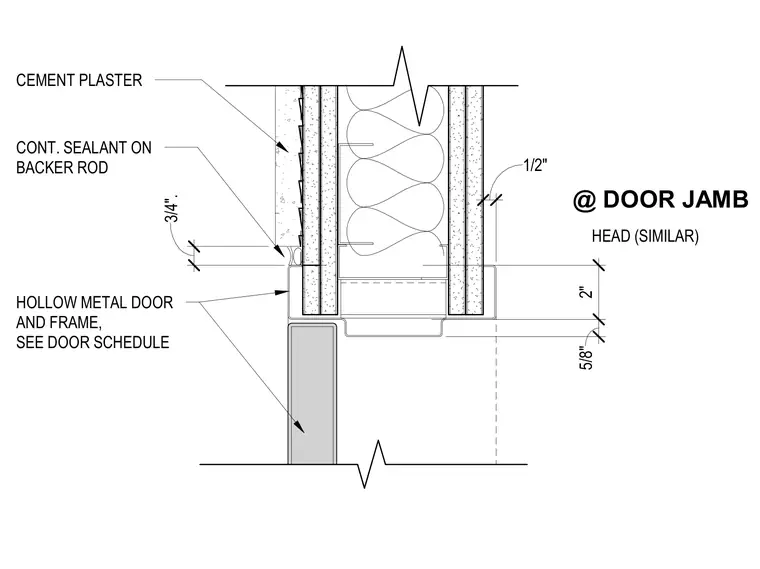

A hollow metal door frame connects to a framed wall assembly finished with three-quarters of an inch of cement plaster over lath. Continuous sealant on a backer rod seals the joint between the frame and the exterior finish. The head condition follows a similar construction profile.
CEMENT PLASTER 3/4". 5/8" 2" 1/2" HOLLOW METAL DOOR AND FRAME, SEE DOOR SCHEDULE CONT. SEALANT ON BACKER ROD @ DOOR JAMB HEAD (SIMILAR)
