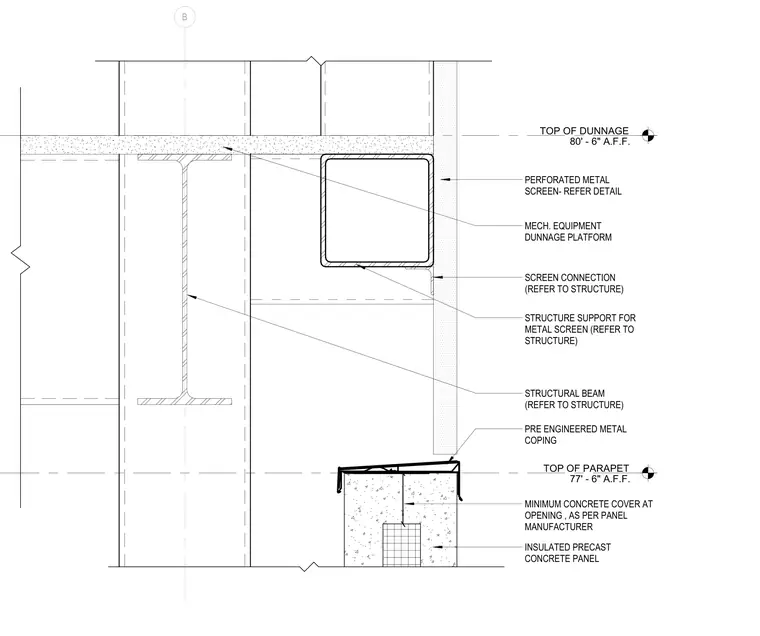

This wall section shows the intersection of the mechanical equipment dunnage platform and the building parapet. A structural beam supports the dunnage platform with the top of dunnage established at 80'-6" above finished floor. A perforated metal screen wraps the mechanical equipment dunnage platform and connects to the primary structure. Below, an insulated precast concrete panel forms the parapet wall, terminating at a top of parapet elevation of 77'-6" above finished floor. A pre-engineered metal coping caps the insulated precast concrete panel.
TOP OF DUNNAGE 80' - 6" A.F.F. TOP OF PARAPET 77' - 6" A.F.F. B MINIMUM CONCRETE COVER AT OPENING , AS PER PANEL MANUFACTURER STRUCTURE SUPPORT FOR METAL SCREEN (REFER TO STRUCTURE) STRUCTURAL BEAM (REFER TO STRUCTURE) MECH. EQUIPMENT DUNNAGE PLATFORM PERFORATED METAL SCREEN- REFER DETAIL INSULATED PRECAST CONCRETE PANEL SCREEN CONNECTION (REFER TO STRUCTURE) PRE ENGINEERED METAL COPING
