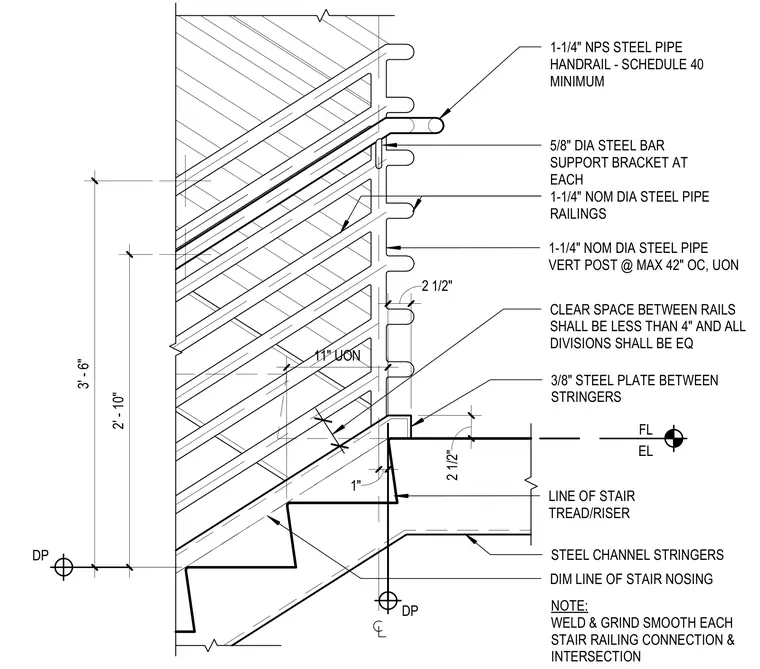

A one-and-one-quarter-inch nominal diameter steel pipe handrail at schedule forty minimum, supported by five-eighths-inch diameter steel bar support brackets at each vertical post. One-and-one-quarter-inch nominal diameter steel pipe railings and vertical posts are spaced at a maximum forty-two inches on center, unless otherwise noted, maintaining a clear space between rails of less than four inches with all divisions equal. A three-eighths-inch steel plate is positioned between the steel channel stringers. All stair railing connections and intersections are welded and ground smooth.
DP DP 2' - 10" 3' - 6" EL FL 1-1/4" NPS STEEL PIPE HANDRAIL - SCHEDULE 40 MINIMUM 5/8" DIA STEEL BAR SUPPORT BRACKET AT EACH VERT POST 1-1/4" NOM DIA STEEL PIPE RAILINGS 1-1/4" NOM DIA STEEL PIPE VERT POST @ MAX 42" OC, UON CLEAR SPACE BETWEEN RAILS SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ 2 1/2" 2 1/2" 3/8" STEEL PLATE BETWEEN STRINGERS LINE OF STAIR TREAD/RISER STEEL CHANNEL STRINGERS DIM LINE OF STAIR NOSING NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION 11" UON 1"
