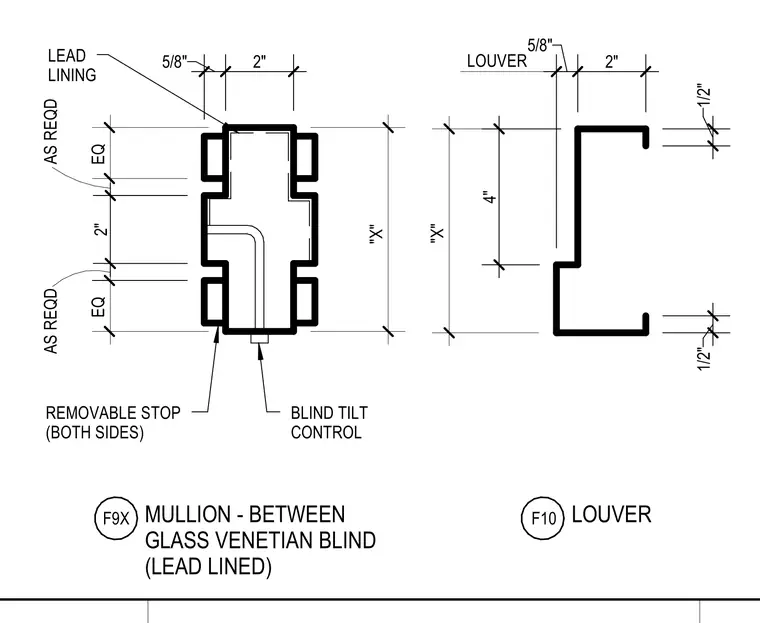

The lead-lined mullion profile features removable stops on both sides and an integrated blind tilt control. Dimensioning indicates equal spacing and specific profile widths including five-eighths inch and two-inch segments. An adjacent louver profile provides dimensional callouts including four-inch and five-eighths inch sections with half-inch returns.
2" 5/8" 2" 4" 5/8" 2" 1/2" 1/2" MULLION - BETWEEN GLASS VENETIAN BLIND (LEAD LINED) F9X LOUVER F10 REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL AS REQD AS REQD EQ EQ LEAD LINING LOUVER "X" "X" "X"
