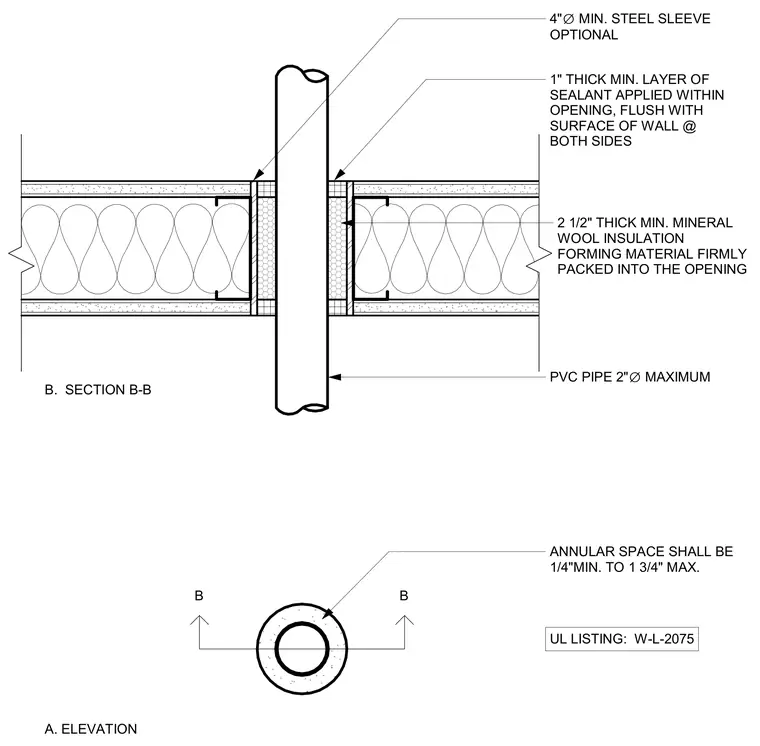

A two-inch maximum diameter PVC pipe penetrates a framed partition with an optional four-inch minimum steel sleeve. The annular space ranges from one-quarter inch minimum to one and three-quarter inches maximum. Two and one-half inch minimum thick mineral wool insulation forming material is firmly packed into the opening. A one-inch thick minimum layer of sealant is applied within the opening, flush with the surface of the wall on both sides in accordance with UL listing W-L-2075.
A. ELEVATION B. SECTION B-B B B PVC PIPE 2" ∅ MAXIMUM 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES UL LISTING: W-L-2075 4" ∅ MIN. STEEL SLEEVE OPTIONAL ANNULAR SPACE SHALL BE 1/4"MIN. TO 1 3/4" MAX. 2 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING
