The gate assembly features a 2-inch by 2-inch galvanized steel tube gate frame with an infill of 1-1/4-inch metal deck welded to the framing and finished to match the screen. Three gate hinges are mounted on one side of the 3-foot 5-inch opening. Two galvanized steel stop plates are welded to the gate frame under the deck flute. Two gate latches are positioned at the top and bottom behind the stop plates, engaging the galvanized vertical tube steel jamb.

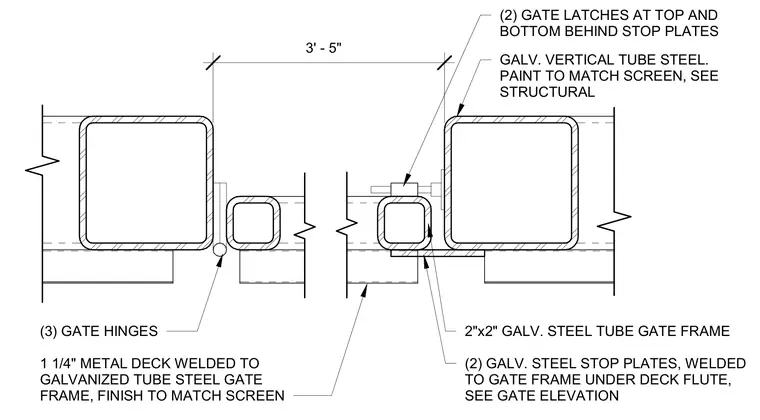

(2) GATE LATCHES AT TOP AND BOTTOM BEHIND STOP PLATES GALV. VERTICAL TUBE STEEL. PAINT TO MATCH SCREEN, SEE STRUCTURAL 2"x2" GALV. STEEL TUBE GATE FRAME (2) GALV. STEEL STOP PLATES, WELDED TO GATE FRAME UNDER DECK FLUTE, SEE GATE ELEVATION 1 1/4" METAL DECK WELDED TO GALVANIZED TUBE STEEL GATE FRAME, FINISH TO MATCH SCREEN (3) GATE HINGES 3' - 5"
