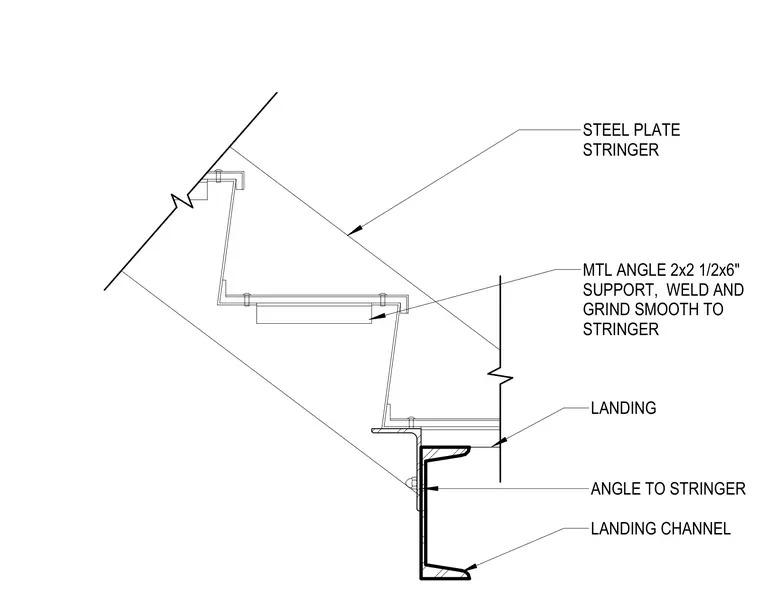

A metal stair landing connects to the stair stringer using a landing channel and a landing angle. A steel plate stringer ties into the assembly, supported by a metal angle welded and ground smooth to the stringer. An angle connects to the stringer to secure the landing framing.
LANDING CHANNEL LANDING ANGLE TO STRINGER STEEL PLATE STRINGER MTL ANGLE 2x2 1/2x6" SUPPORT, WELD AND GRIND SMOOTH TO STRINGER
