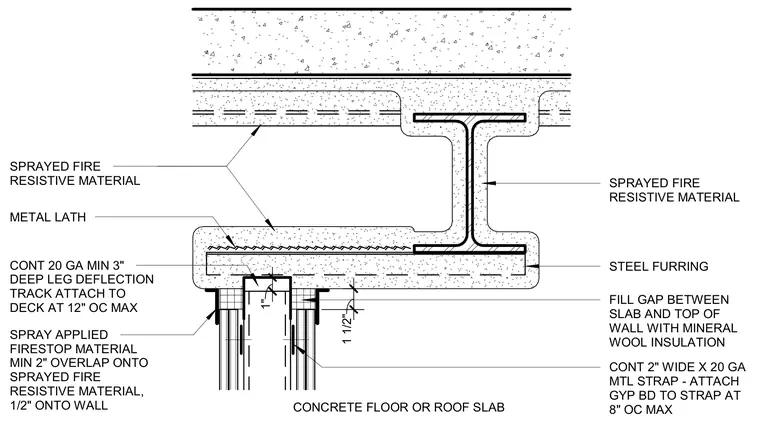

A continuous twenty-gauge minimum three-inch deep leg deflection track attaches to the concrete floor or roof slab at twelve inches on center maximum. The gap between the slab and the top of the wall fills with mineral wool insulation. Spray-applied firestop material provides a minimum two-inch overlap onto the sprayed fire-resistive material and one-half inch onto the wall. A continuous two-inch wide by twenty-gauge metal strap receives gypsum board attachment at eight inches on center maximum. Sprayed fire-resistive material coats the concrete slab, steel furring, and metal lath assembly.
1" CONCRETE FLOOR OR ROOF SLAB SPRAYED FIRE RESISTIVE MATERIAL STEEL FURRING METAL LATH SPRAYED FIRE RESISTIVE MATERIAL SPRAY APPLIED FIRESTOP MATERIAL MIN 2" OVERLAP ONTO SPRAYED FIRE RESISTIVE MATERIAL, 1/2" ONTO WALL FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION CONT 2" WIDE X 20 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX CONT 20 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX 1 1/2"
