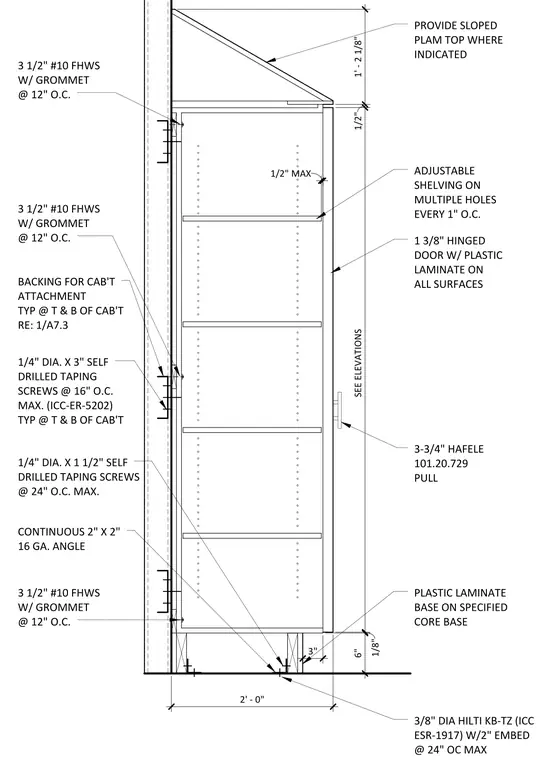

This casework assembly features a plastic laminate finish on a specified core base with an optional sloped top. The cabinet is secured to the wall backing at the top and bottom using quarter-inch diameter by three-inch self-drilling tapping screws at sixteen inches on center, alongside three-and-a-half-inch number ten flat-head wood screws with grommets at twelve inches on center. A continuous two-inch by two-inch sixteen-gauge steel angle anchors the base, fastened with three-eighths-inch diameter Hilti KB-TZ expansion anchors with two-inch embedment at twenty-four inches on center maximum. The unit includes adjustable shelving spaced every one inch on center and a one-and-three-eighths-inch hinged door surfaced in plastic laminate with a Hafele pull.
3 1/2" #10 FHWS W/ GROMMET @ 12" O.C. 3 1/2" #10 FHWS W/ GROMMET @ 12" O.C. 3 1/2" #10 FHWS W/ GROMMET @ 12" O.C. 3" 1' ‐ 2 1/8" 1/2" SEE ELEVATIONS 1/8" 6" 1/2" MAX PLASTIC LAMINATE BASE ON SPECIFIED CORE BASE ADJUSTABLE SHELVING ON MULTIPLE HOLES EVERY 1" O.C. 1 3/8" HINGED DOOR W/ PLASTIC LAMINATE ON ALL SURFACES 3‐3/4" HAFELE 101.20.729 PULL PROVIDE SLOPED PLAM TOP WHERE INDICATED 2' ‐ 0" BACKING FOR CAB'T ATTACHMENT TYP @ T & B OF CAB'T RE: 1/A7.3 1/4" DIA. X 3" SELF DRILLED TAPING SCREWS @ 16" O.C. MAX. (ICC‐ER‐5202) TYP @ T & B OF CAB'T 1/4" DIA. X 1 1/2" SELF DRILLED TAPING SCREWS @ 24" O.C. MAX. CONTINUOUS 2" X 2" 16 GA. ANGLE 3/8" DIA HILTI KB‐TZ (ICC ESR‐1917) W/2" EMBED @ 24" OC MAX
