The assembly features a stone floor over a setting bed supported by a built-up slab over polystyrene insulation at finish floor elevation 15'-11 3/4". A metal deck and structural framing sit beneath the floor buildup. The ceiling plane at finish ceiling elevation 13'-3" incorporates LED acrylic light panels with glass covers hung from continuous blackened steel angle supports.

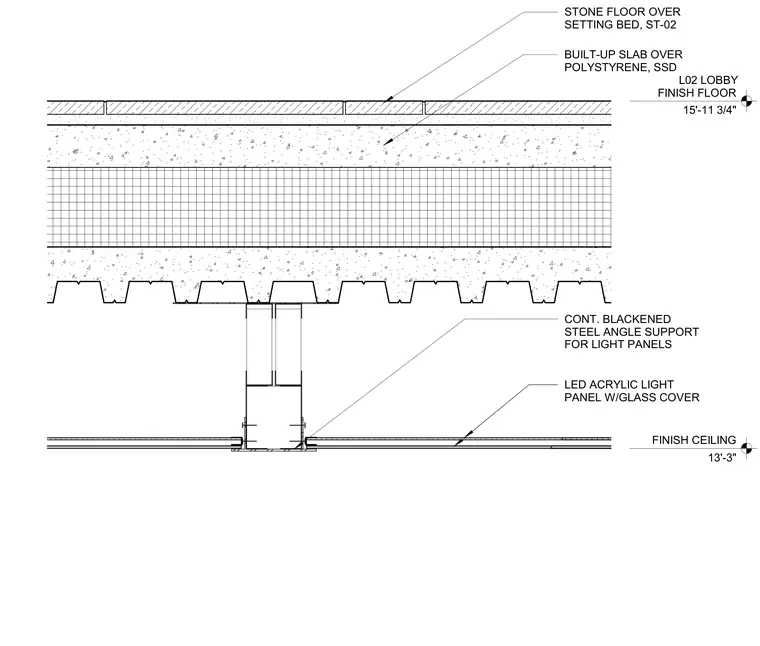

FINISH CEILING 13'-3" FINISH FLOOR 15'-11 3/4" L02 LOBBY STONE FLOOR OVER SETTING BED, ST-02 LED ACRYLIC LIGHT PANEL W/GLASS COVER CONT. BLACKENED STEEL ANGLE SUPPORT FOR LIGHT PANELS BUILT-UP SLAB OVER POLYSTYRENE, SSD
