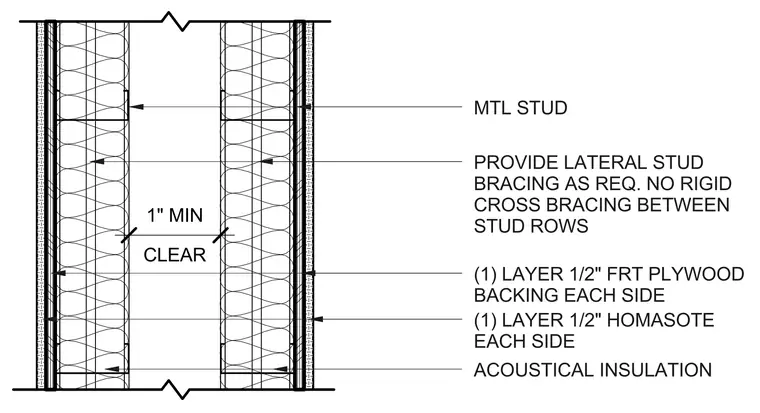

The assembly consists of two parallel rows of metal studs separated by a one-inch minimum clear space without rigid cross-bracing. Lateral stud bracing is provided as required. Each side of the partition receives one layer of one-half-inch fire-retardant-treated plywood backing, one layer of one-half-inch homasote, and acoustical insulation within the cavity.
PROVIDE LATERAL STUD BRACING AS REQ. NO RIGID CROSS BRACING BETWEEN STUD ROWS ACOUSTICAL INSULATION (1) LAYER 1/2" FRT PLYWOOD BACKING EACH SIDE CLEAR 1" MIN MTL STUD (1) LAYER 1/2" HOMASOTE EACH SIDE
