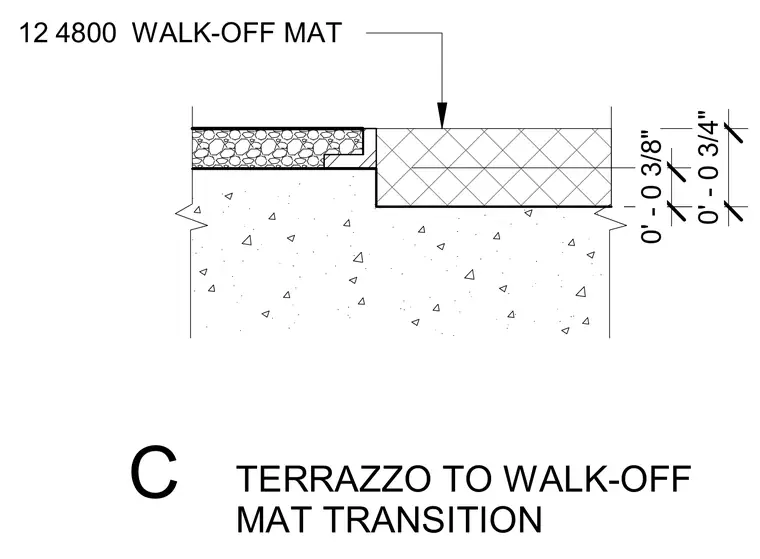

A terrazzo finish adjoins a walk-off mat at a level transition point. The walk-off mat is set into a recessed concrete slab with a depth of three-eighths of an inch, matching the total assembly thickness of three-quarters of an inch.
C TERRAZZO TO WALK-OFF MAT TRANSITION 12 4800 WALK-OFF MAT 0' - 0 3/4" 0' - 0 3/8"
