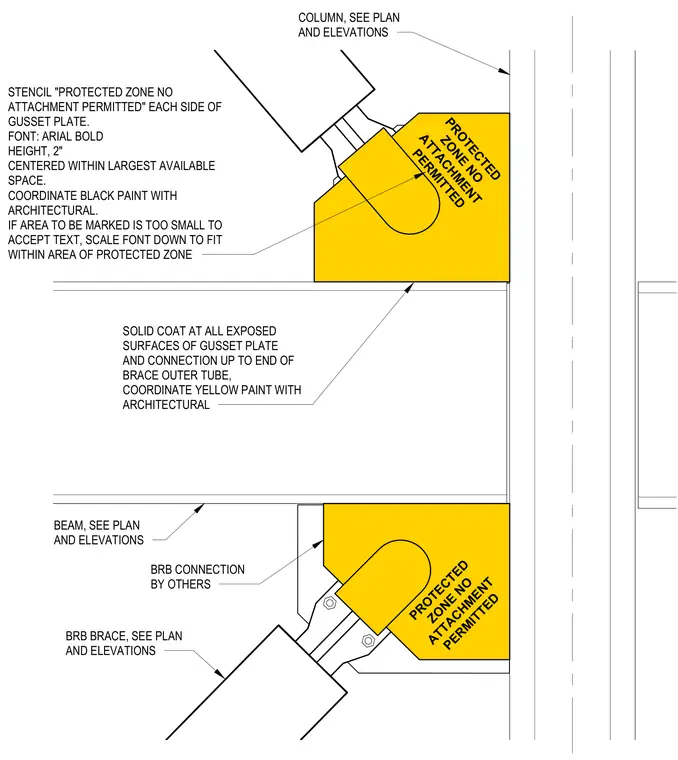

A steel column connects to a steel beam with a gusset plate assembly supporting a buckling-restrained brace. A solid yellow paint coat is applied to all exposed surfaces of the gusset plate and connection up to the end of the brace outer tube. Each side of the gusset plate is stenciled with the text "PROTECTED ZONE NO ATTACHMENT PERMITTED" in a two-inch Arial bold font centered within the available space. The black font paint and yellow coating colors are coordinated with the architectural specifications. The font is scaled down to fit if the marked area is too small for the standard text size.
PROTECTED ZONE NO ATTACHMENT PERMITTED PROTECTED ZONE NO ATTACHMENT PERMITTED BRB CONNECTION BY OTHERS STENCIL "PROTECTED ZONE NO ATTACHMENT PERMITTED" EACH SIDE OF GUSSET PLATE. FONT: ARIAL BOLD HEIGHT, 2" CENTERED WITHIN LARGEST AVAILABLE SPACE. COORDINATE BLACK PAINT WITH ARCHITECTURAL. IF AREA TO BE MARKED IS TOO SMALL TO ACCEPT TEXT, SCALE FONT DOWN TO FIT WITHIN AREA OF PROTECTED ZONE BEAM, SEE PLAN AND ELEVATIONS BRB BRACE, SEE PLAN AND ELEVATIONS COLUMN, SEE PLAN AND ELEVATIONS SOLID COAT AT ALL EXPOSED SURFACES OF GUSSET PLATE AND CONNECTION UP TO END OF BRACE OUTER TUBE, COORDINATE YELLOW PAINT WITH ARCHITECTURAL
