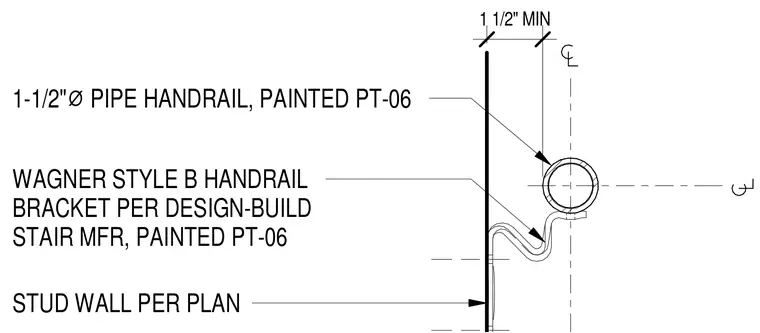

A one-and-one-half-inch diameter painted pipe handrail mounts to a stud wall per plan using a Wagner Style B handrail bracket painted with PT-06. The handrail maintains a one-and-one-half-inch minimum clearance from the wall face. The bracket is provided per the design-build stair manufacturer specifications.
1 1/2" MIN 1-1/2" ⌀ PIPE HANDRAIL, PAINTED PT-06 WAGNER STYLE B HANDRAIL BRACKET PER DESIGN-BUILD STAIR MFR, PAINTED PT-06 STUD WALL PER PLAN
