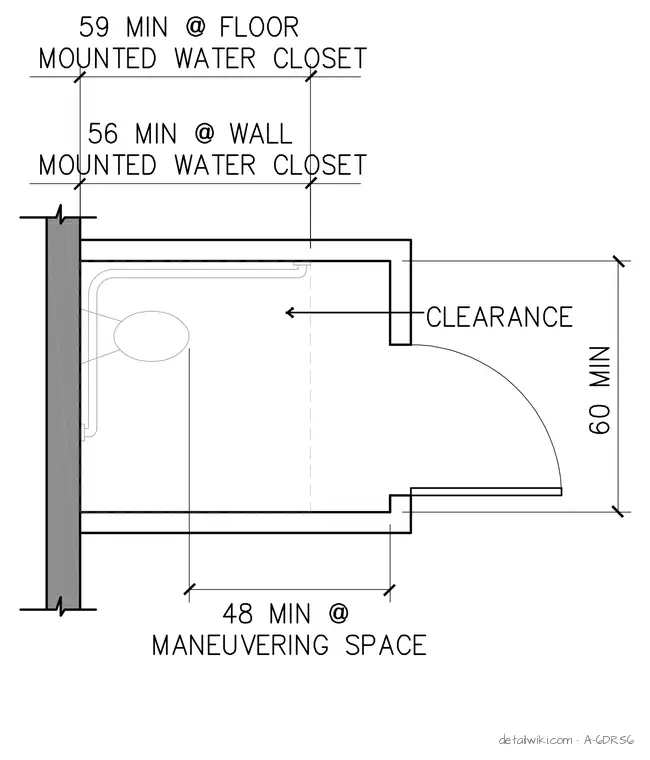

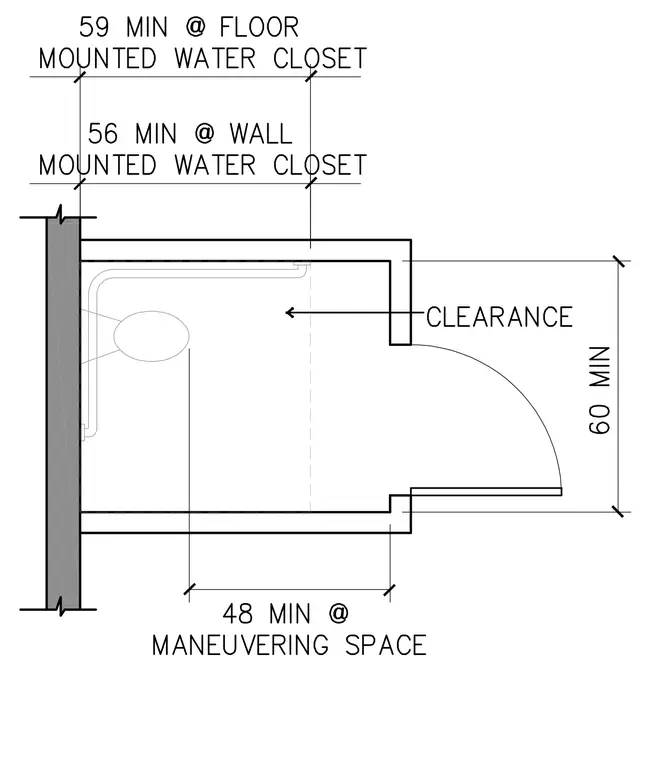

Accessible water closet stall spatial requirements. Minimum depth is 59 inches for floor-mounted water closets and 56 inches for wall-mounted water closets. Stall interior width is 60 inches minimum. Out-swinging door maneuvering space is 48 inches minimum. These dimensions ensure compliance with accessibility standards for fixture placement and door swing clearance.
