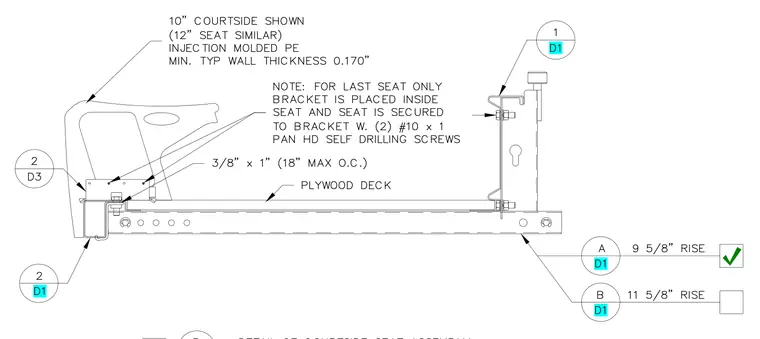

An injection molded polyethylene courtside seat with a minimum typical wall thickness of 0.170 inches is mounted to a plywood deck supported by structural framing. A ten-inch courtside seat is shown, with a twelve-inch seat being similar. For the last seat only, a bracket is placed inside the seat and the seat is secured to the bracket using two number 10 by one-inch pan head self-drilling screws. The assembly accommodates riser heights of 9 5/8 inches or 11 5/8 inches.
9 5/8" RISE 11 5/8" RISE 1 D1 2 D3 B D1 2 D1 A D1 10" COURTSIDE SHOWN (12" SEAT SIMILAR) INJECTION MOLDED PE MIN. TYP WALL THICKNESS 0.170" PLYWOOD DECK 3/8" x 1" (18" MAX O.C.) NOTE: FOR LAST SEAT ONLY BRACKET IS PLACED INSIDE SEAT AND SEAT IS SECURED TO BRACKET W. (2) #10 x 1 PAN HD SELF DRILLING SCREWS T 0 C B
