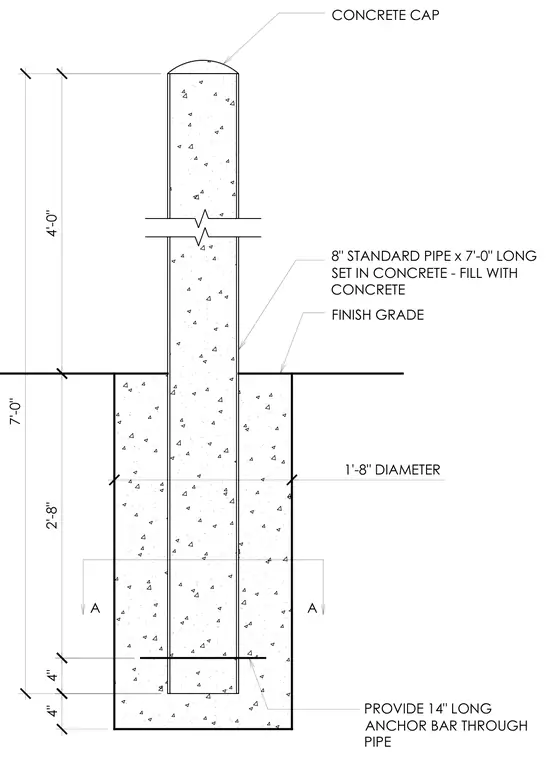

An eight-inch standard steel pipe measuring seven feet long is set into a concrete foundation and filled solid with concrete, topped with a rounded concrete cap. The concrete pier measures one foot eight inches in diameter and extends seven feet deep below the finish grade, with a four-inch clearance at the bottom. A fourteen-inch long anchor bar passes horizontally through the lower portion of the pipe to secure it within the footing.
CONCRETE CAP 8" STANDARD PIPE x 7'-0" LONG SET IN CONCRETE - FILL WITH CONCRETE FINISH GRADE A A 4" 4" 2'-8" 7'-0" 4'-0" 1'-8" DIAMETER PROVIDE 14" LONG ANCHOR BAR THROUGH PIPE
