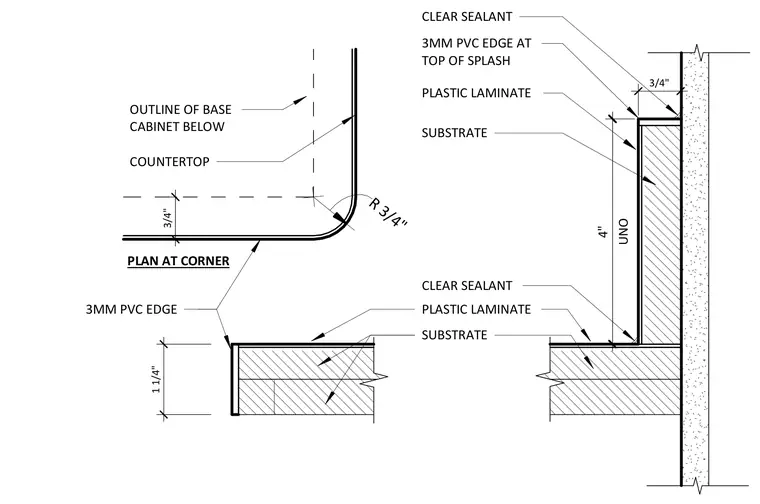

This millwork detail shows a plastic laminate countertop and four-inch backsplash intersecting at a wall corner. The substrate is finished with a three-millimeter PVC edge banding applied to exposed edges, measuring one and one-quarter inches deep at the countertop profile. Clear sealant beads are detailed at the top of the backsplash splash and along the intersection with the adjacent wall finish. A plan view at the corner indicates a three-quarter-inch radius curve for the outer edge banding and shows the underlying base cabinet outline.
1 1/4" 3MM PVC EDGE SUBSTRATE PLASTIC LAMINATE CLEAR SEALANT CLEAR SEALANT PLASTIC LAMINATE SUBSTRATE 3/4" 3/4" R 3/4" OUTLINE OF BASE CABINET BELOW COUNTERTOP PLAN AT CORNER UNO 4" 3MM PVC EDGE AT TOP OF SPLASH
