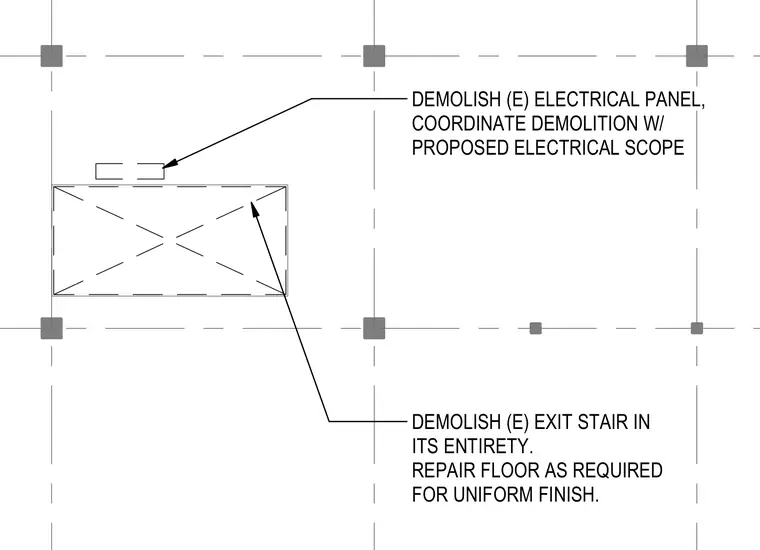

Demolish the existing exit stair in its entirety and repair the floor as required for a uniform finish. Demolish the existing electrical panel and coordinate the demolition with the proposed electrical scope.
DEMOLISH (E) EXIT STAIR IN ITS ENTIRETY. REPAIR FLOOR AS REQUIRED FOR UNIFORM FINISH. DEMOLISH (E) ELECTRICAL PANEL, COORDINATE DEMOLITION W/ PROPOSED ELECTRICAL SCOPE
