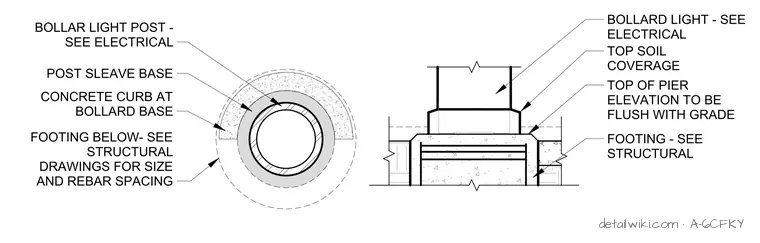

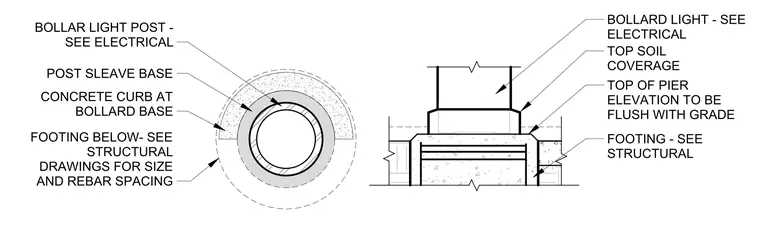

This assembly consists of a bollard light post mounted within a post sleeve base, which is set into a concrete pier. The top of the concrete pier is finished flush with the surrounding grade. A concrete curb surrounds the bollard base at the surface level. The footing size and reinforcing bar spacing are to be determined per the structural drawings, while the bollard light unit itself is specified in the electrical drawings.
