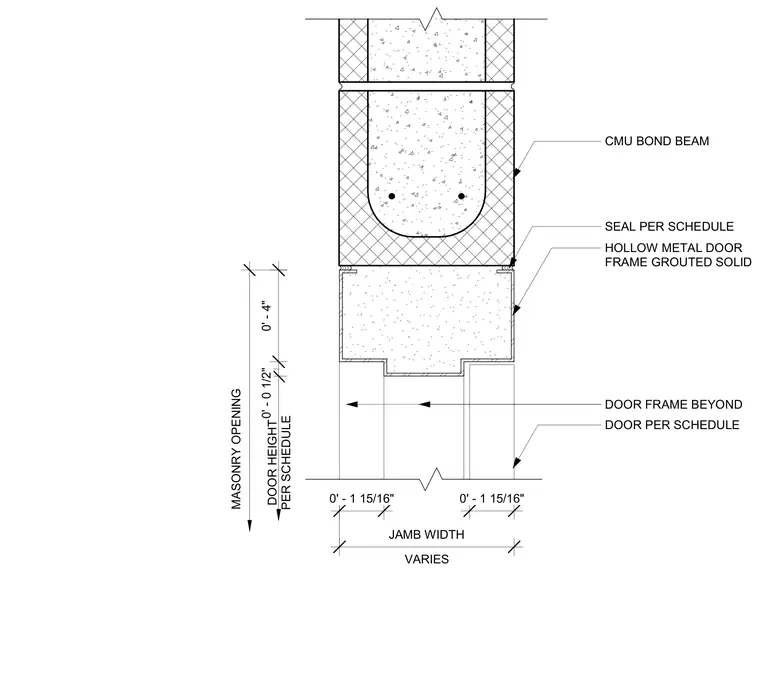

A hollow metal door frame grouted solid installs beneath a concrete masonry unit bond beam with a perimeter seal per schedule. The head detail accommodates a masonry opening width that varies with the door height and frame dimensions.
VARIES JAMB WIDTH MASONRY OPENING DOOR HEIGHT PER SCHEDULE 0' - 0 1/2" 0' - 4" 0' - 1 15/16" 0' - 1 15/16" CMU BOND BEAM HOLLOW METAL DOOR FRAME GROUTED SOLID SEAL PER SCHEDULE DOOR FRAME BEYOND DOOR PER SCHEDULE
