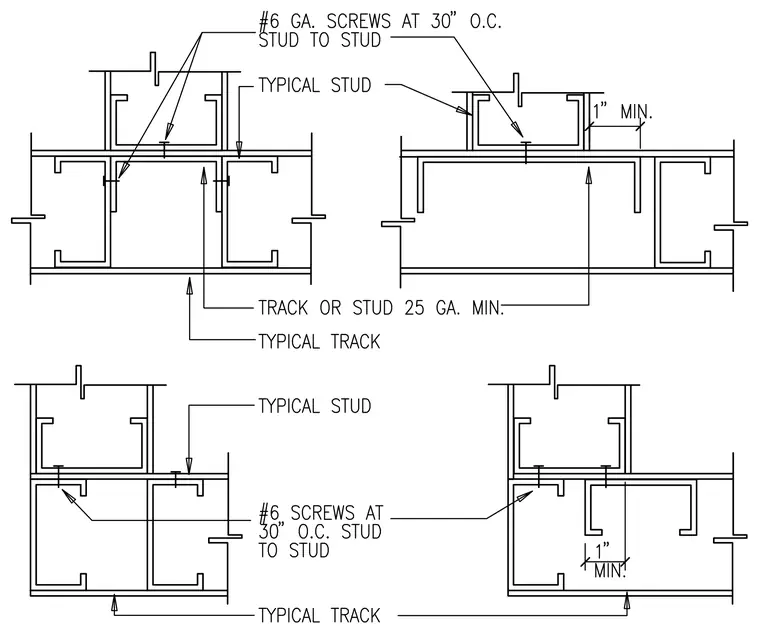

These details show framing configurations for cold-formed steel stud intersections, including tee-junctions and corner conditions. Typical studs and tracks are constructed from twenty-five gauge minimum steel. Stud-to-stud connections are made using number six gauge screws spaced at thirty inches on center. Certain configurations maintain a one-inch minimum clearance offset from the intersecting wall boundary.
