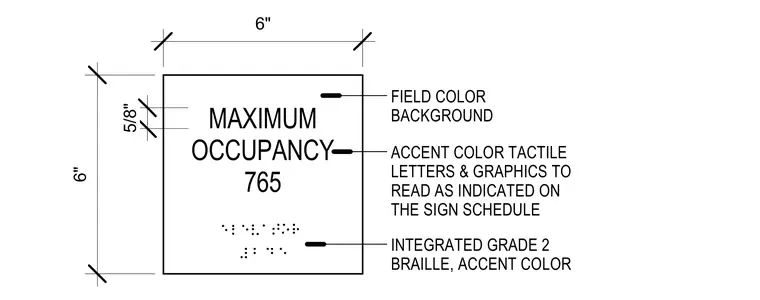

This occupancy sign measures six inches by six inches with an accent color background and tactile letters displaying maximum occupancy text and numerical values. Integrated Grade 2 Braille is positioned below the text and graphics. The layout specifies field color background, accent color tactile letters and graphics per the sign schedule, and integrated Grade 2 Braille in accent color.
MAXIMUM OCCUPANCY 765 6" 6" FIELD COLOR BACKGROUND ACCENT COLOR TACTILE LETTERS & GRAPHICS TO READ AS INDICATED ON THE SIGN SCHEDULE INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR 5/8"
