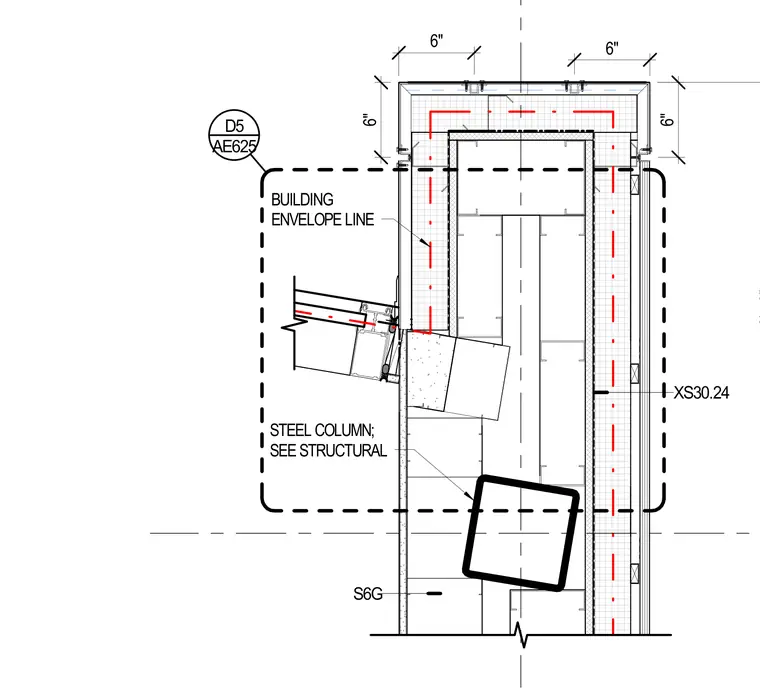

An exterior short wingwall centers on a steel column. The building envelope line wraps around the perimeter of the assembly, coordinating with adjacent framing and structural elements. Dimensional callouts indicate six-inch clearances and alignments for the exterior wall components.
S6G XS30.24 6" 6" 6" 6" AE625 D5 3' - 0" BUILDING ENVELOPE LINE STEEL COLUMN; SEE STRUCTURAL
