The roofing assembly consists of a TPO roofing membrane applied over a one-quarter inch cover board and R30 roof insulation. The entire assembly bears upon a metal deck, with framing and structural attachment sized per structural drawings.

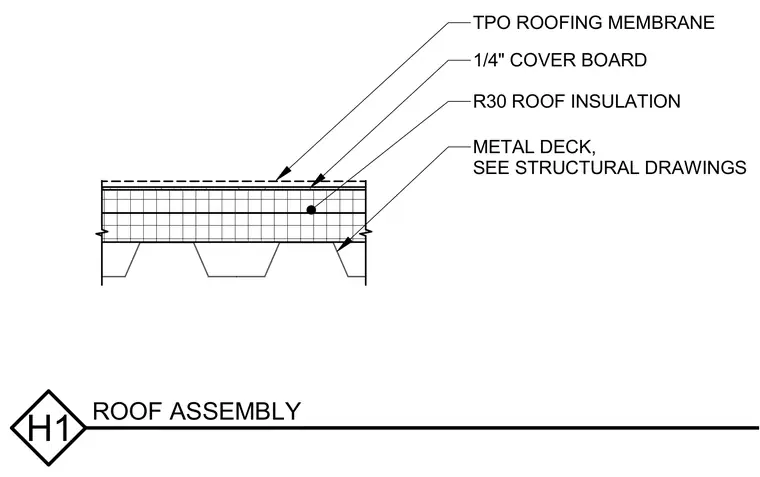

TPO ROOFING MEMBRANE R30 ROOF INSULATION METAL DECK, SEE STRUCTURAL DRAWINGS 1/4" COVER BOARD H1 ROOF ASSEMBLY
