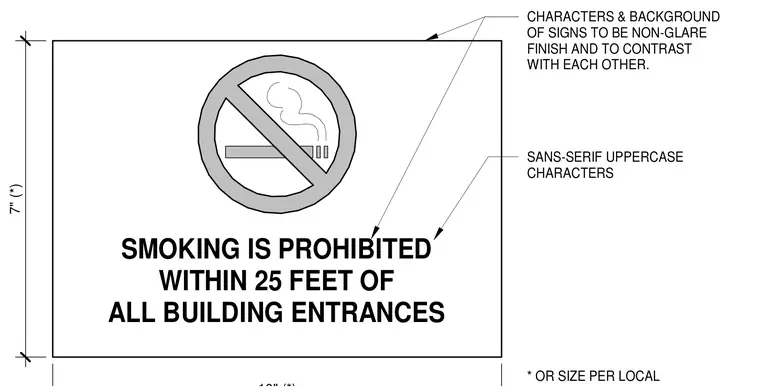

Signage requirements specify a non-glare finish on both characters and background to ensure contrast. Typography consists of sans-serif uppercase characters sized at seven inches or per local codes. The sign text prohibits smoking within twenty-five feet of all building entrances.
SMOKING IS PROHIBITED WITHIN 25 FEET OF ALL BUILDING ENTRANCES 7" (*) CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. SANS-SERIF UPPERCASE CHARACTERS * OR SIZE PER LOCAL
