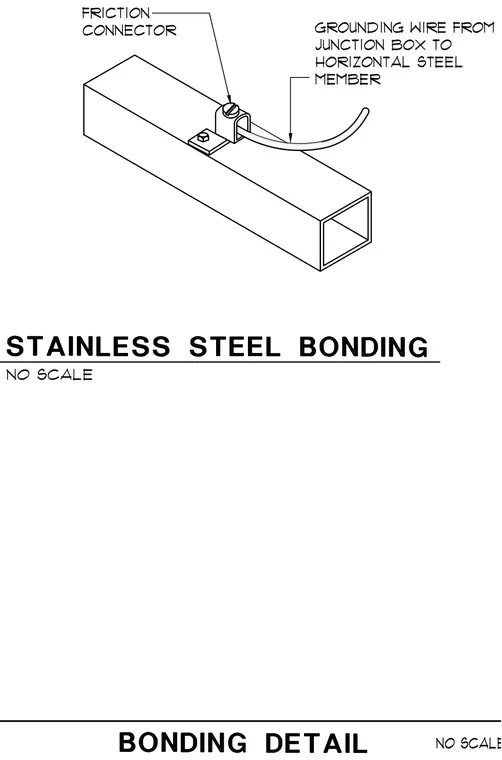

A grounding wire runs from a junction box to a horizontal steel member, secured directly to the steel surface by a friction connector. The mechanical clamp fastens securely to the structural shape to ensure electrical continuity.
