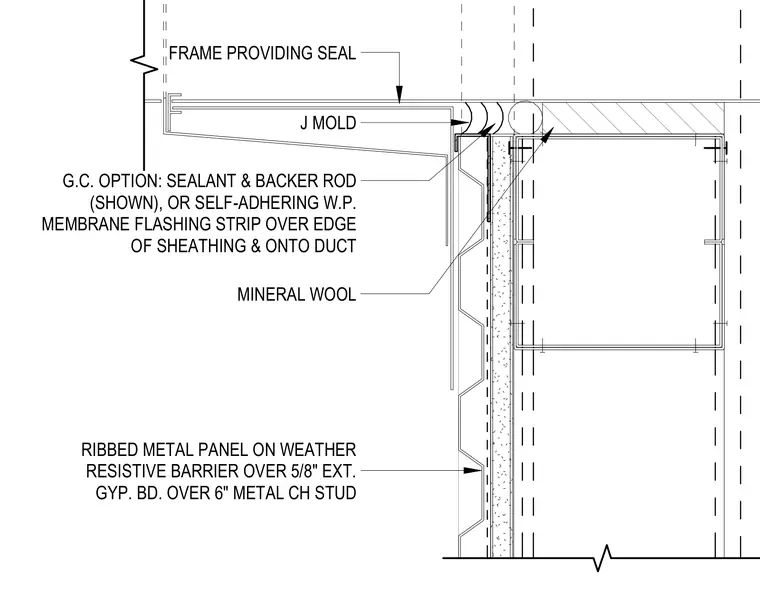

A ribbed metal panel is installed over a weather resistive barrier, five-eighths-inch exterior gypsum board, and six-inch metal CH studs. A J-mold terminates the edge alongside mineral wool insulation. The general contractor has the option to use sealant and backer rod or a self-adhering waterproof membrane flashing strip over the edge of the sheathing and onto the duct frame to provide a proper seal.
RIBBED METAL PANEL ON WEATHER RESISTIVE BARRIER OVER 5/8" EXT. GYP. BD. OVER 6" METAL CH STUD G.C. OPTION: SEALANT & BACKER ROD (SHOWN), OR SELF-ADHERING W.P. MEMBRANE FLASHING STRIP OVER EDGE OF SHEATHING & ONTO DUCT FRAME PROVIDING SEAL J MOLD MINERAL WOOL
