Architectural · A-6B72Y

Breakroom Casework - Trash Receptacle

Materials

Steel Stainless Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

About this detail

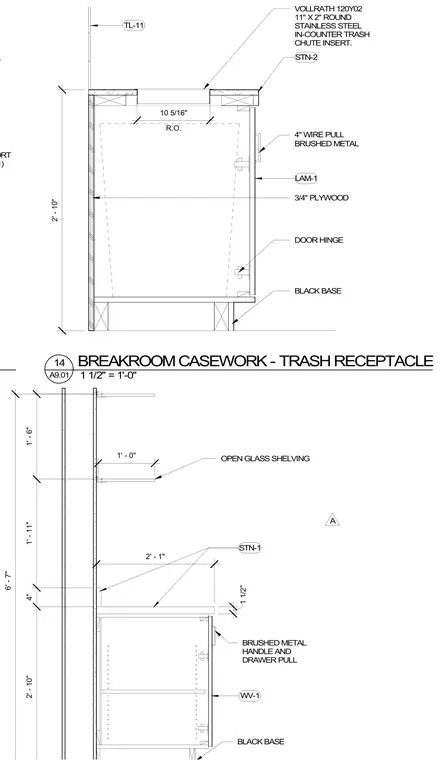

This breakroom casework assembly features a Vollrath 120Y02 eleven-inch by two-inch round stainless steel in-counter trash chute insert integrated into the countertop. The casework is built from three-quarter-inch plywood with a plastic laminate finish and a black base. Hardware includes a four-inch wire pull in brushed metal, concealed door hinges, and brushed metal handles and drawer pulls. Above the counter, open glass shelving is mounted to vertical plywood supports. Finish tags include LAM-1, STN-1, STN-2, TL-11, and WV-1.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
