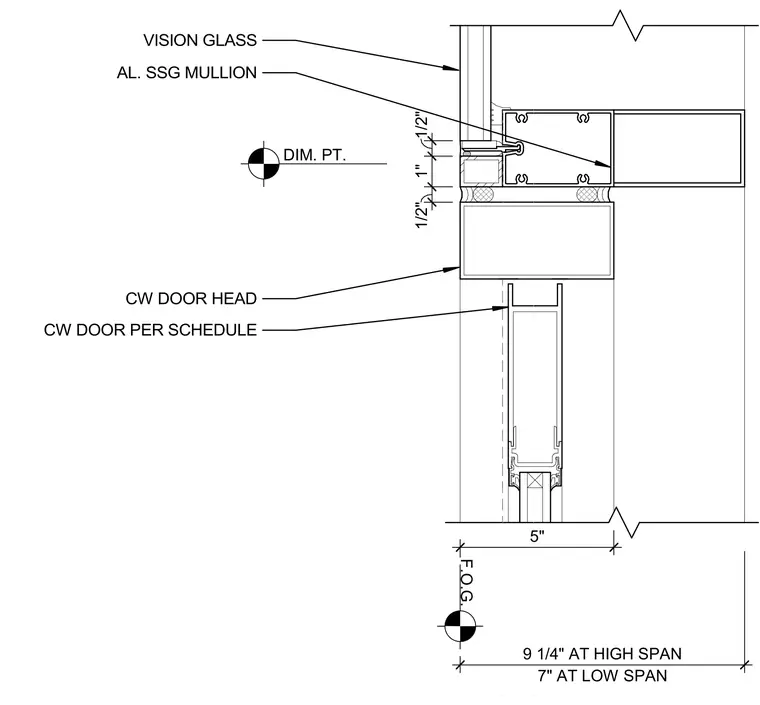

A curtain wall door head connection with an aluminum structural silicone glazed mullion supports vision glass above a curtain wall door specified per the schedule. The assembly includes dimension points for vertical layout, showing a 1/2-inch and 1-inch dimension spacing at the head frame. Horizontal dimensions note a 5-inch frame depth with varying spans of 7 inches at low span and 9-1/4 inches at high span relative to the face of glazing.
DIM. PT. F.O.G. CW DOOR HEAD 1/2" 1" 1/2" CW DOOR PER SCHEDULE VISION GLASS AL. SSG MULLION 7" AT LOW SPAN 9 1/4" AT HIGH SPAN 5"
