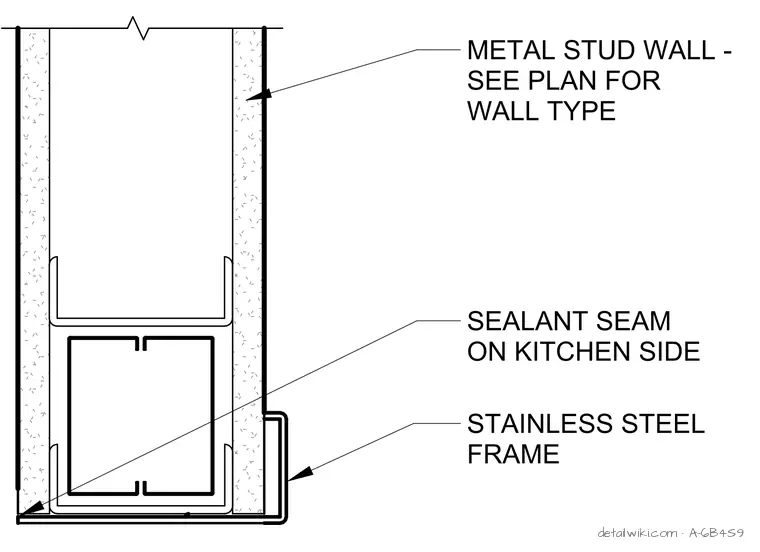

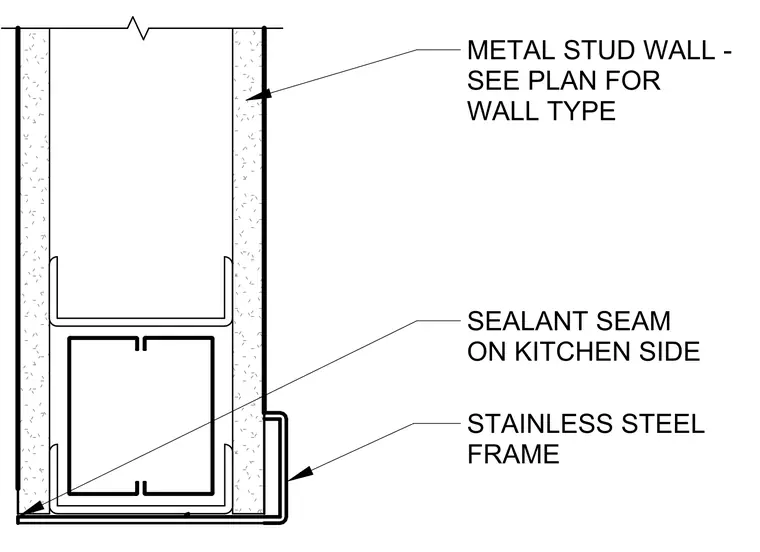

A stainless steel frame wraps the pass-through window opening within a metal stud wall, featuring a sealant seam at the kitchen-side junction. The surrounding assembly consists of a metal stud wall with gypsum board, per the wall type referenced on the floor plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
