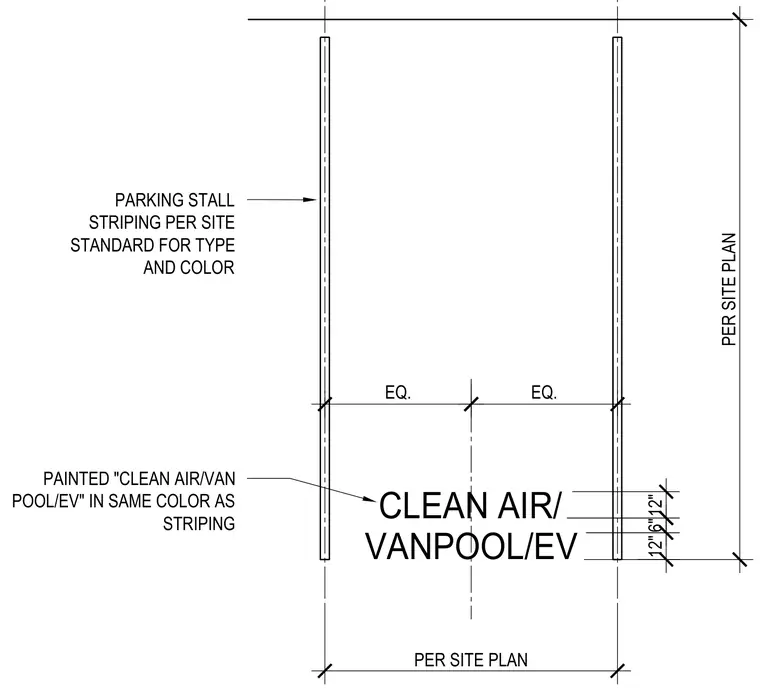

Parking stall striping follows the site standard for type and color, with painted pavement lettering indicating clean air, vanpool, and electric vehicle spaces. The lettering layout is centered between the stall lines using equal spacing dimensions and specific vertical font height dimensions per the site plan.
CLEAN AIR/ VANPOOL/EV PER SITE PLAN PAINTED "CLEAN AIR/VAN POOL/EV" IN SAME COLOR AS STRIPING PER SITE PLAN PARKING STALL STRIPING PER SITE STANDARD FOR TYPE AND COLOR 12" 6"12" EQ. EQ.
