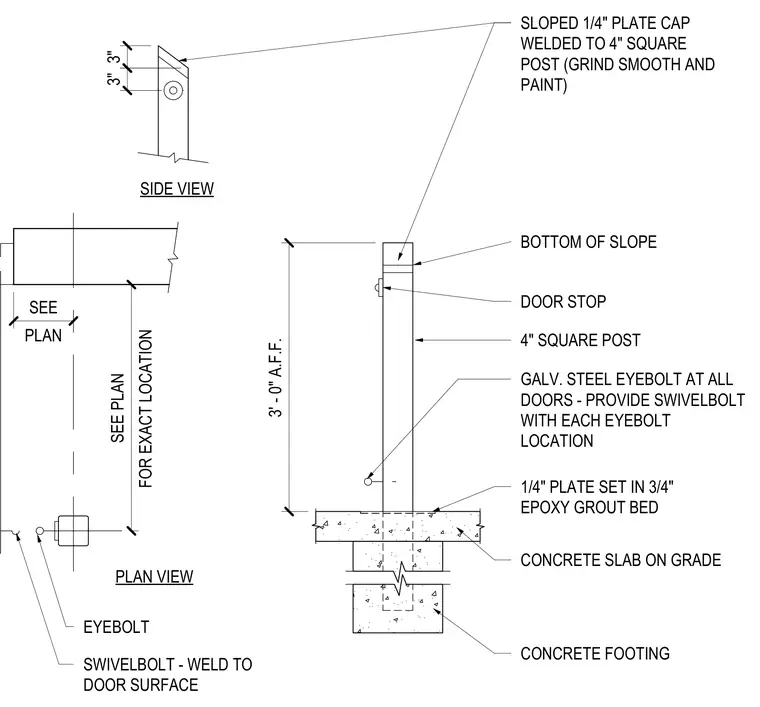

A four-inch square steel post is welded with a sloped one-quarter-inch plate cap at the top, ground smooth and painted. The post extends three feet above the finished floor to a door stop and includes a galvanized steel eyebolt with a swivelbolt at all doors. The base of the post is secured with a one-quarter-inch plate set in a three-quarter-inch epoxy grout bed over a concrete slab on grade and concrete footing.
3" 3" SIDE VIEW PLAN VIEW PLAN SEE FOR EXACT LOCATION SEE PLAN EYEBOLT SWIVELBOLT - WELD TO DOOR SURFACE SLOPED 1/4" PLATE CAP WELDED TO 4" SQUARE POST (GRIND SMOOTH AND PAINT) BOTTOM OF SLOPE DOOR STOP 4" SQUARE POST GALV. STEEL EYEBOLT AT ALL DOORS - PROVIDE SWIVELBOLT WITH EACH EYEBOLT LOCATION CONCRETE SLAB ON GRADE CONCRETE FOOTING 1/4" PLATE SET IN 3/4" EPOXY GROUT BED 3' - 0" A.F.F.
