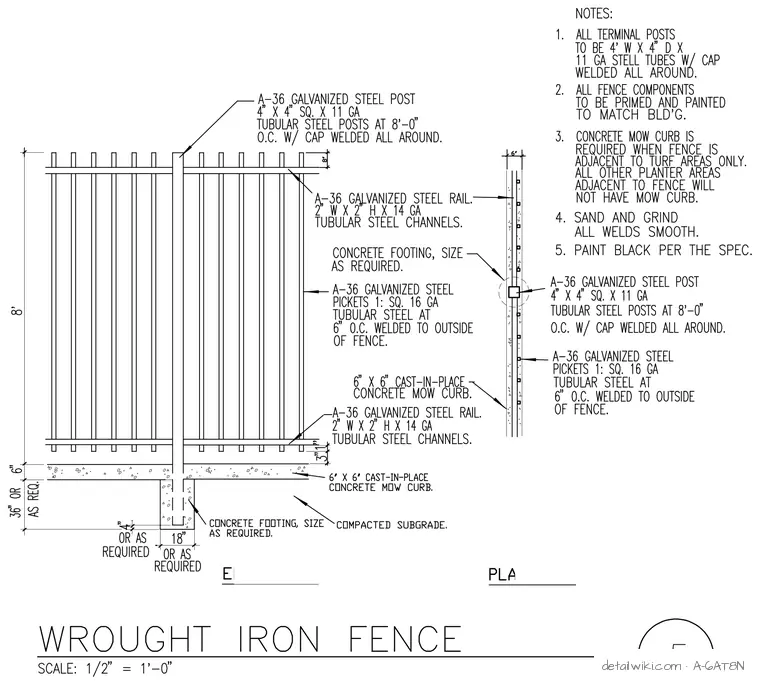

This assembly consists of four-inch by four-inch square eleven-gauge A-36 galvanized steel posts spaced at eight feet on center, with caps welded all around. Two-inch by two-inch fourteen-gauge tubular steel channels serve as horizontal rails, supporting one-inch square sixteen-gauge tubular steel pickets spaced at six inches on center and welded to the outside of the fence. The fence is anchored into a concrete footing of variable size, with a six-inch by six-inch cast-in-place concrete mow curb provided at the base where adjacent to turf areas. All welds are to be sanded and ground smooth, and all components are to be primed and painted black per project specifications.
