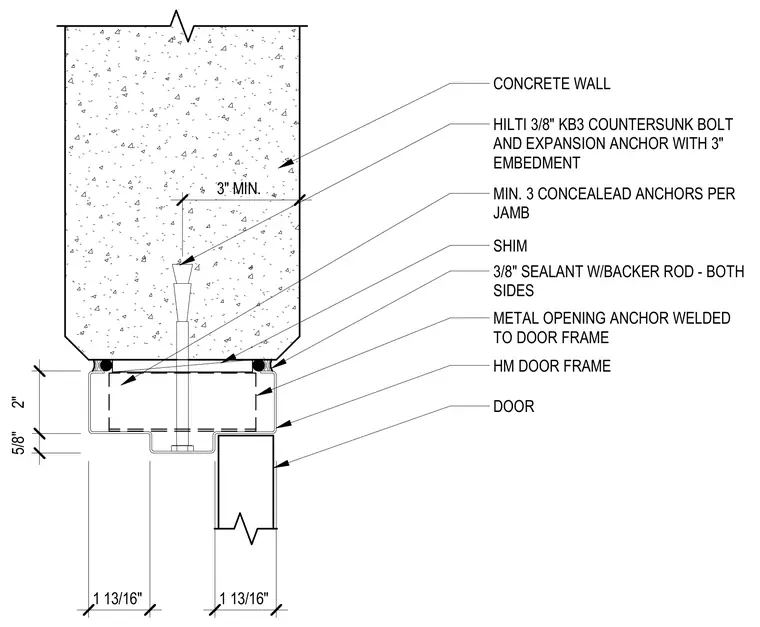

A hollow metal door frame is secured to a concrete wall with a minimum three-inch embedment using three-eighths-inch Hilti KB3 countersunk expansion bolts and expansion anchors per jamb. Shims are placed for alignment between the frame and the concrete substrate. A metal opening anchor is welded to the hollow metal door frame. A three-eighths-inch sealant bead with a backer rod is applied on both sides of the joint between the frame and the concrete wall.
5/8" 2" 1 13/16" 1 13/16" HILTI 3/8" KB3 COUNTERSUNK BOLT AND EXPANSION ANCHOR WITH 3" EMBEDMENT SHIM 3/8" SEALANT W/BACKER ROD - BOTH SIDES HM DOOR FRAME DOOR MIN. 3 CONCEALEAD ANCHORS PER JAMB METAL OPENING ANCHOR WELDED TO DOOR FRAME 3" MIN. CONCRETE WALL
