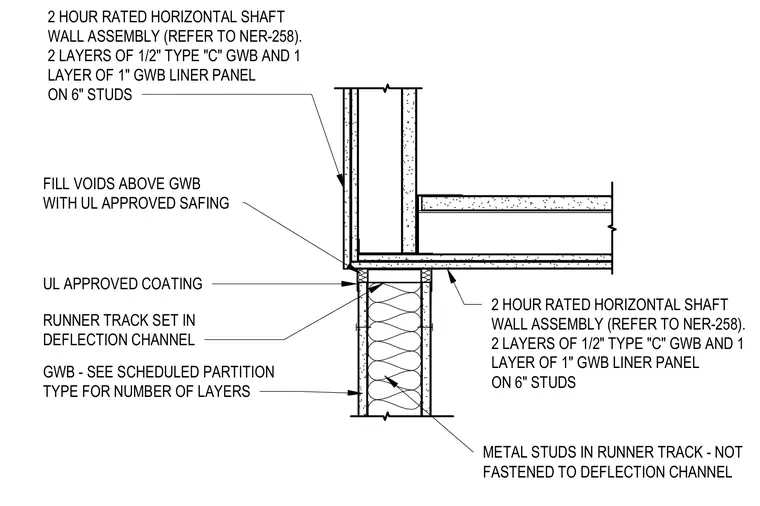

A two-hour rated horizontal shaft wall assembly per NER-258 is constructed with two layers of 1/2-inch Type C gypsum wallboard and one layer of 1-inch gypsum wallboard liner panel on 6-inch studs. The runner track is set in a deflection channel, with metal studs left unfastened to the deflection channel. Voids above the gypsum wallboard are filled with UL-approved safing and finished with a UL-approved coating. Gypsum wallboard layer counts are coordinated per the scheduled partition type.
2 HOUR RATED HORIZONTAL SHAFT WALL ASSEMBLY (REFER TO NER-258). 2 LAYERS OF 1/2" TYPE "C" GWB AND 1 LAYER OF 1" GWB LINER PANEL ON 6" STUDS RUNNER TRACK SET IN DEFLECTION CHANNEL METAL STUDS IN RUNNER TRACK - NOT FASTENED TO DEFLECTION CHANNEL GWB - SEE SCHEDULED PARTITION TYPE FOR NUMBER OF LAYERS FILL VOIDS ABOVE GWB WITH UL APPROVED SAFING UL APPROVED COATING 2 HOUR RATED HORIZONTAL SHAFT WALL ASSEMBLY (REFER TO NER-258). 2 LAYERS OF 1/2" TYPE "C" GWB AND 1 LAYER OF 1" GWB LINER PANEL ON 6" STUDS
