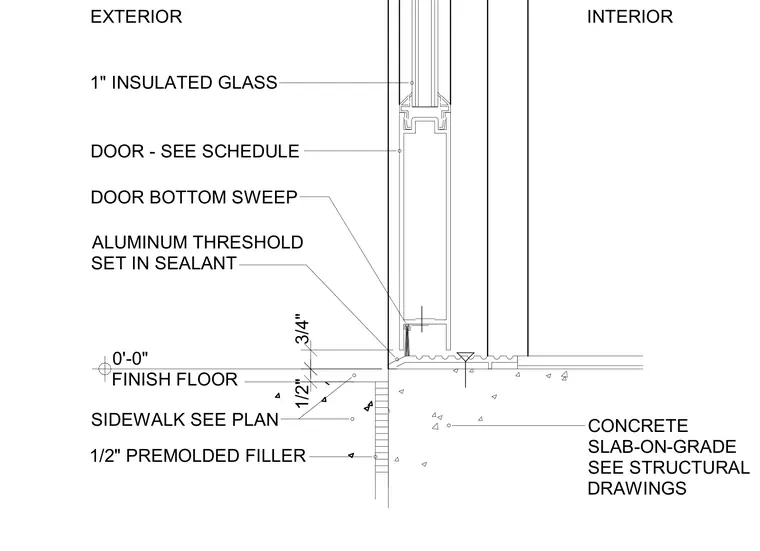

An aluminum threshold set in sealant bears directly on the concrete slab-on-grade adjacent to the exterior sidewalk. A half-inch premolded filler separates the exterior pavement from the interior concrete slab at the building edge. The storefront door assembly features a bottom sweep gasket and one-inch insulated glass units framed above the finish floor level.
0'-0" FINISH FLOOR 3/4" 1/2" DOOR - SEE SCHEDULE 1" INSULATED GLASS INTERIOR EXTERIOR 1/2" PREMOLDED FILLER SIDEWALK SEE PLAN DOOR BOTTOM SWEEP CONCRETE SLAB-ON-GRADE SEE STRUCTURAL DRAWINGS ALUMINUM THRESHOLD SET IN SEALANT
