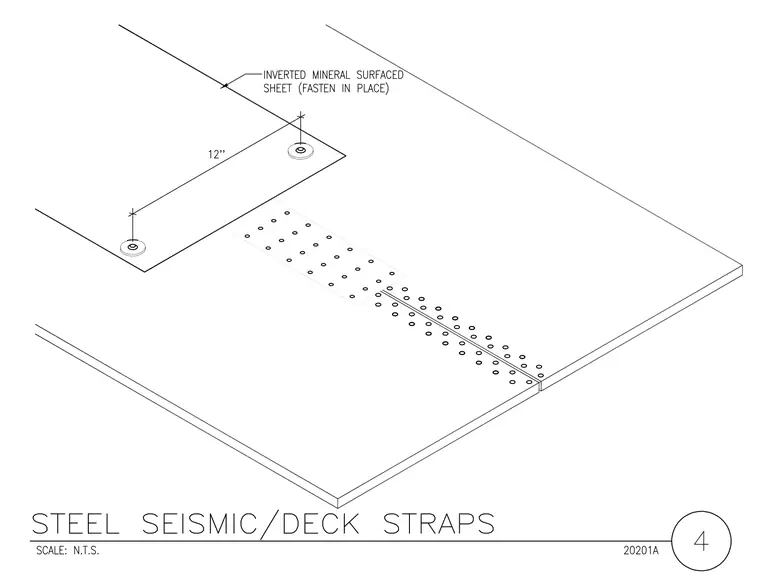

An isometric detail of steel seismic deck straps fastening roof panels with an inverted mineral-surfaced sheet. The assembly includes steel straps bridging panel joints, secured with mechanical fasteners spaced twelve inches apart. An inverted mineral-surfaced sheet is fastened in place over the deck components. The connection accommodates seismic movement across panel boundaries in structural roof assemblies.
