Architectural · A-6AHD3

Fire Extinguisher Attachment

Materials

Concrete Steel Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)Gypsum / Drywall

Elements

Walls Millwork / Casework Connections / Plates

About this detail

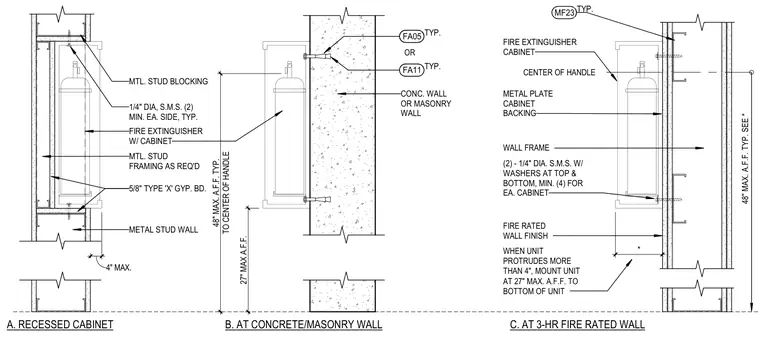

Fire extinguisher cabinet installations across three wall conditions: recessed in a metal stud wall, surface-mounted on a concrete or masonry wall, and mounted on a three-hour fire-rated wall. The recessed assembly features metal stud framing and blocking with five-eighths-inch Type X gypsum board, securing the cabinet using quarter-inch diameter sheet metal screws with a minimum of two per side. Concrete and masonry installations secure the unit using expansion anchors or fasteners into the solid wall. All installations maintain a maximum height of forty-eight inches above finished floor to the center of the handle, with units protruding more than four inches limited to twenty-seven inches maximum to the bottom of the unit.
