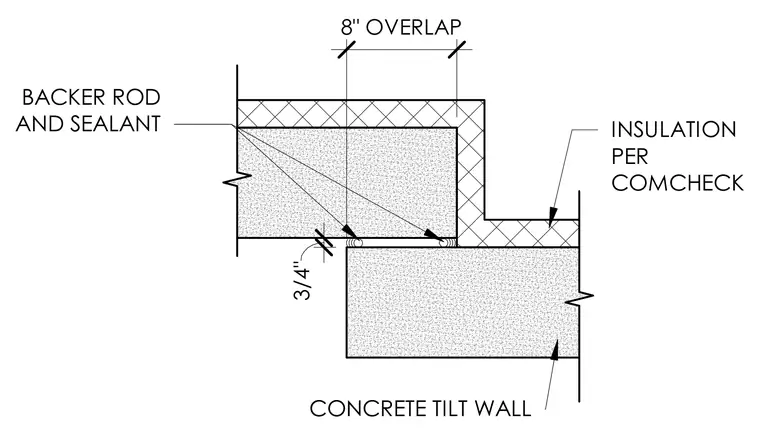

An offset joint between concrete tilt-up wall panels incorporates continuous insulation sized per Comcheck with an eight-inch lap. The joint features a three-quarter-inch offset sealed with backer rod and sealant.
INSULATION PER COMCHECK CONCRETE TILT WALL BACKER ROD AND SEALANT 3/4" 8" OVERLAP
