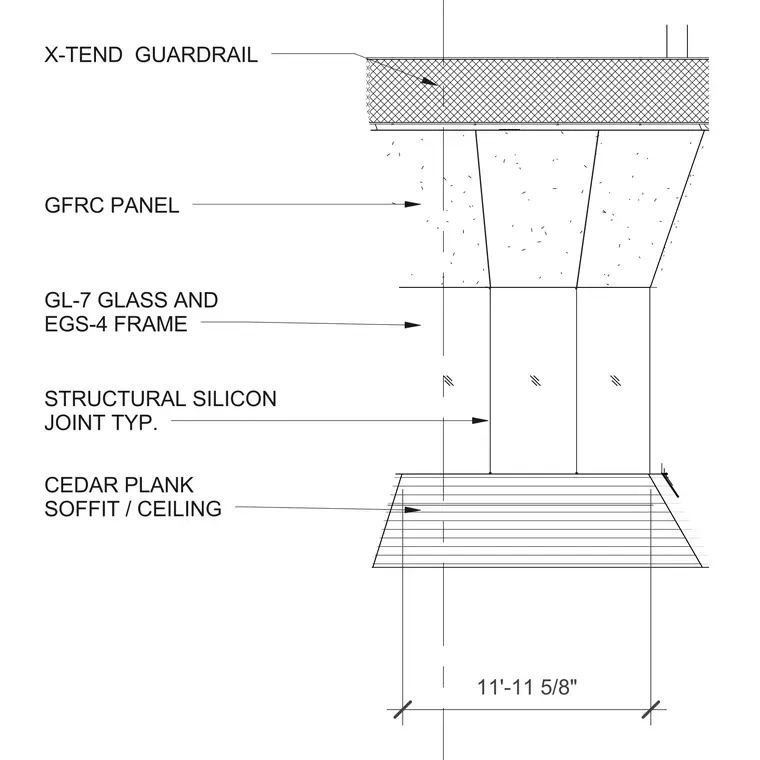

An exterior assembly integrates GL-7 glass panels set in an EGS-4 frame with typical structural silicone joints. A glass fiber reinforced concrete panel sits adjacent to the glazing system. The top of the assembly incorporates an X-tend guardrail, while the underside features a cedar plank soffit and ceiling spanning eleven feet eleven and five-eighths inches.
GFRC PANEL GL-7 GLASS AND EGS-4 FRAME CEDAR PLANK SOFFIT / CEILING X-TEND GUARDRAIL STRUCTURAL SILICON JOINT TYP. 11'-11 5/8"
