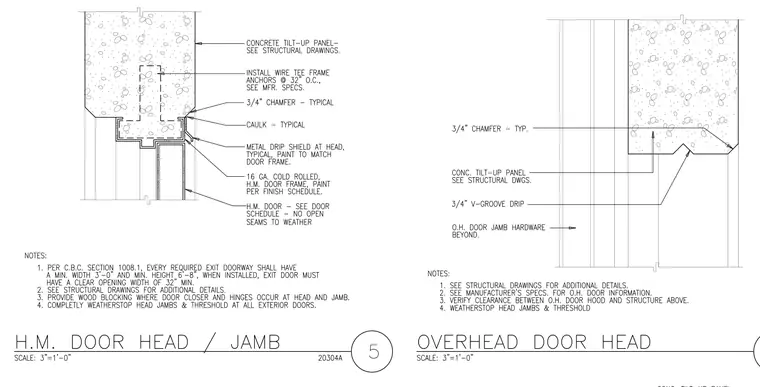

A hollow metal door frame installs into a concrete tilt-up wall panel with wire tee frame anchors spaced at thirty-two inches on center per manufacturer specifications. A metal drip shield occurs at the head and is painted to match the door frame. Caulking seals the exterior joint between the frame and the concrete panel adjacent to a three-quarter-inch typical chamfer. The sixteen-gauge cold-rolled hollow metal door frame receives a finish per the finish schedule with no open seams to weather.
