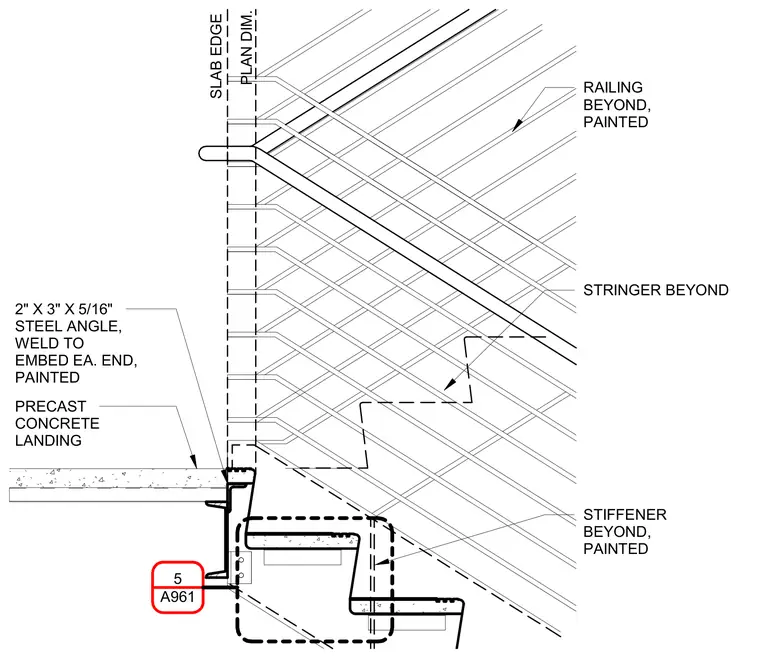

A precast concrete landing bears against a two-inch by three-inch by five-sixteenth-inch steel angle welded to an embed at each end and finished with paint. A painted stair stringer and stiffener sit beyond the landing, adjacent to a painted steel railing assembly. The slab edge aligns with the plan dimension reference line.
A961 5 SLAB EDGE PLAN DIM. PRECAST CONCRETE LANDING 2" X 3" X 5/16" STEEL ANGLE, WELD TO EMBED EA. END, PAINTED RAILING BEYOND, PAINTED STRINGER BEYOND STIFFENER BEYOND, PAINTED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
