A-6A6H7 — Vertical Metal Siding - Outside Corner - Plan

Architectural · A-6A6H7

Vertical Metal Siding - Outside Corner - Plan

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.22
Discipline: Architectural

Materials

Aluminum Composite Metal (misc.)

Elements

Expansion / Control Joints Facades / Cladding Walls Waterproofing / Flashing

Connections

Bolted Connection

Text on the drawing

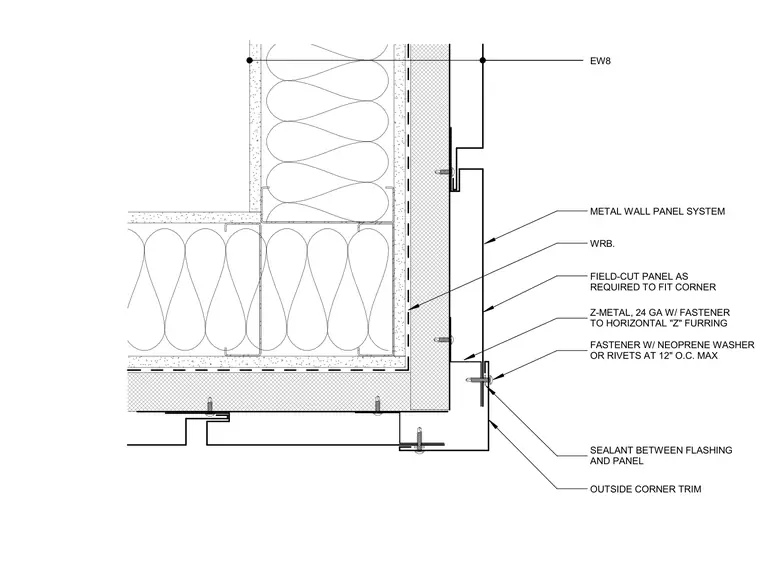

Z-METAL, 24 GA W/ FASTENER TO HORIZONTAL "Z" FURRING FASTENER W/ NEOPRENE WASHER OR RIVETS AT 12" O.C. MAX WRB. METAL WALL PANEL SYSTEM SEALANT BETWEEN FLASHING AND PANEL OUTSIDE CORNER TRIM FIELD-CUT PANEL AS REQUIRED TO FIT CORNER EW8
